2023
Z20 Pro
w/ 225 L Pro XS® FourStroke w/Torque Master Mercury® Pro XS®
Boat, Motor, & Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$64205
USD
|
Overview
The NITRO® Z20 Pro gives you a host of the most popular high-performance upgrade options at an incredible value!
The brain of this fish-catching powerhouse is two new Lowrance® HDS® LIVE fishfinders networked together—and to a new Lowrance Ghost™ trolling motor, giving you the power to find fish and stay on them while the competition is still searching.
The basis of the Z20 is our NVT™ hull—a design that uses a series of parabolic curves instead of traditional strakes, resulting in a hull that's faster, gives more lift while on plane and improves handling. The Z-CORE™ seating system with Force Flex suspension and contoured frame, designed in collaboration with Kevin VanDam, gives you the most comfortable ride in our history. And it comes fully rigged on a new custom-fit, tandem-axle steel trailer.
Specifications
| Length | 6.15 m | 20' 2'' |
| Beam | 2.39 m | 7' 10'' |
| Bottom Width | 1.91 m | 6' 3'' |
| Max. Recommended HP | 250 HP | |
| Fuel Capacity | 189.25 L | 50 gal. |
| Max. Person Capacity | 4 persons | |
| Max. Person Weight | 260.82 kg | 575 lbs. |
| Max. Person, Motor & Gear Weight | 793.79 kg | 1750 lbs. |
| Interior Depth | 45.72 cm | 18'' |
| Transom Height | 55.88 cm | 22'' |
| Deadrise | 16 degrees | |
| Draft | 40.64 cm | 16'' |
| Average Dry Weight | 907.18 kg | 2000 lbs. |
| Average Package Weight | 1837.05 kg | 4050 lbs. |
| Package Height | 1.85 m | 6' 1'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 8.23 m | 27' |
| Storage Length | 7.21 m | 23' 8'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | ||||
|---|---|---|---|---|---|
| Mercury® Pro XS® | |||||
| 225 L Pro XS® FourStroke w/Torque Master | - |
$64205 USD
|
Select Dealer | ||
| 250 L Pro XS® w/Torque Master | - |
$65395 USD
|
Select Dealer | ||
Standard Features
Pro
- Bow Lowrance® HDS® LIVE 9 gimbal-mounted fishfinder w/ActiveTarget® & StructureScan®
- Console Lowrance® HDS® LIVE 9 flush-mounted fishfinder w/StructureScan®
- Lowrance® Ghost® 36V, 47” (1.19 m) shaft trolling motor
- NMEA network for fishfinders & trolling motor to sync equipment
- Ethernet communication between fishfinders
- Livewell culling system
- Factory-applied keel protector
- 1 standard & 1 automatic bilge pump
- Hot Foot® throttle
- Pro-Trim lever
- 4-bank, 40-amp battery charger
- 1 extra trolling battery
Comfort, Convenience & Peace of Mind
- NMMA® certified
- Flotation meets or exceeds NMMA® & U.S. Coast Guard requirements
- EPA-compliant fuel system
- Anti-fatigue, padded comfort bow deck
- Non-skid bow & stern mats
- 5 drink holders
- 5 stainless steel pull-up cleats, including cleat at driver seat
- 4 grab handles (1 at each seat)
- Fire extinguisher
- Horn
- Paddle
Livewell System
- 2 aft 19-gal. (71.92 L) insulated, rotomolded GUARDIAN™ livewells w/digital timers & rounded corners
- 500 GPH (1,892.71 LPH) aerator/fill pump
- 750 GPH (2,839.06 LPH) livewell recirculation/pump-out system

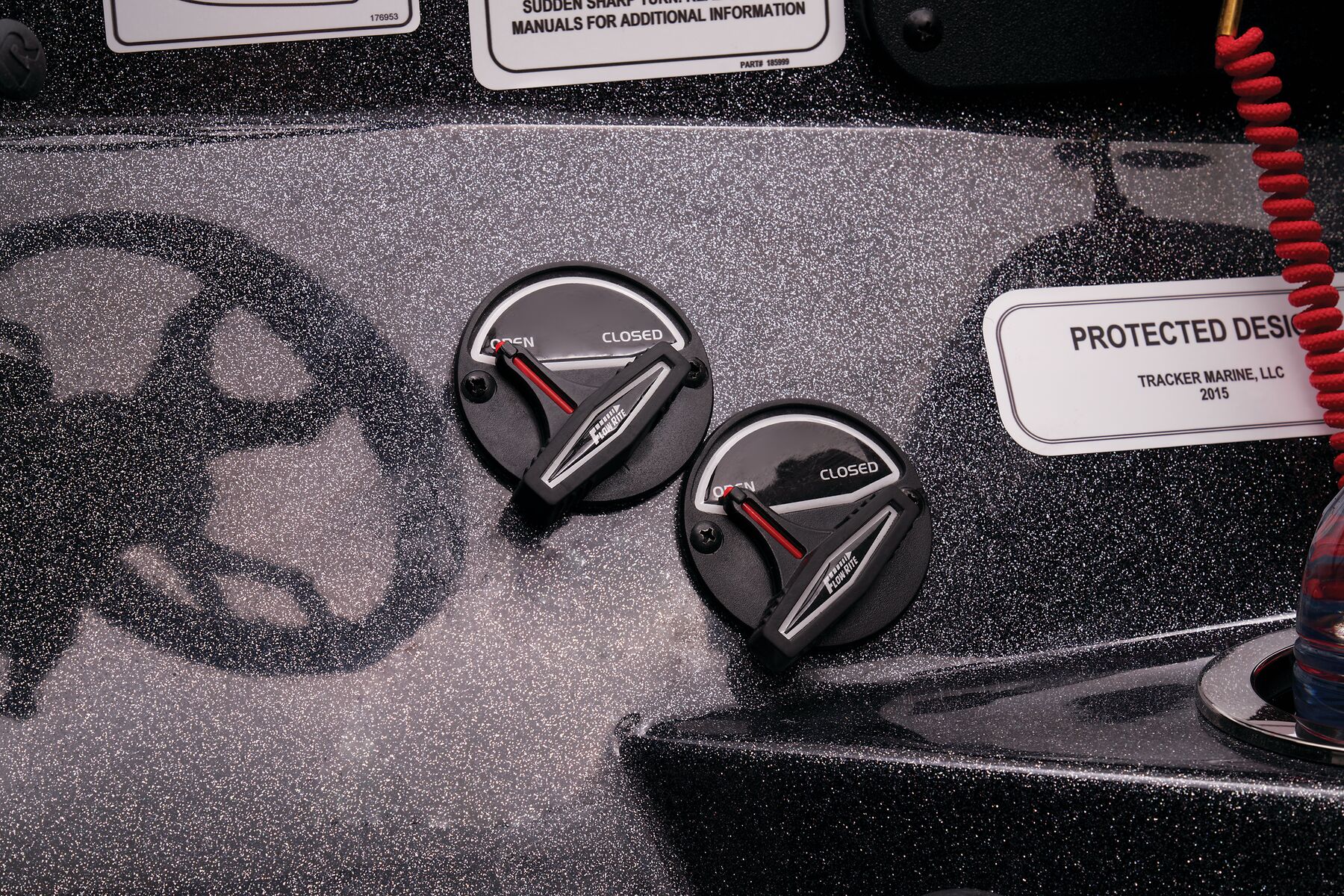

- Dual remote drain controls
Trolling Motor
- Trolling motor pedal recess
Console
- Modular, aerodynamic console design w/expanded leg clearance & large fishfinder surface
- Removable acrylic, tinted windscreen
- NEW 5" (12.7 cm) digital touchscreen
- Veethree® multifunction instrumentation w/speedometer/fuel gauge, tach/trim gauge, voltmeter gauge & water pressure gauge
- Dash light dimmer
- Tilt hydraulic steering
- Below-console RAM® X-Grip® phone holder & 12V outlet
- LED courtesy light
- Ready to accept optional removable port console
Interior
- 42.5-sq.-ft. (4.0-sq.-m) anti-fatigue, padded bow deck for comfort & casting mobility
- Bike seat w/pedestal
- Folding fishing seat w/composite frame
- Z-CORE™ seating system w/Force Flex suspension & contoured, rotomolded frame for driver & passenger seats
- Low driver & passenger flat seat mounting
- Bow tool/drink holder
- Bow port & starboard rod hold-down straps
- Molded-in drainage channels around bow storage compartments
- Oversized, lockable bow port & starboard rod lockers w/lift assists for rods up to 8' (2.44 m)
- Rod organizer in bow port rod locker
- Oversized lockable bow center storage locker w/TACKLE MANAGEMENT SYSTEM™

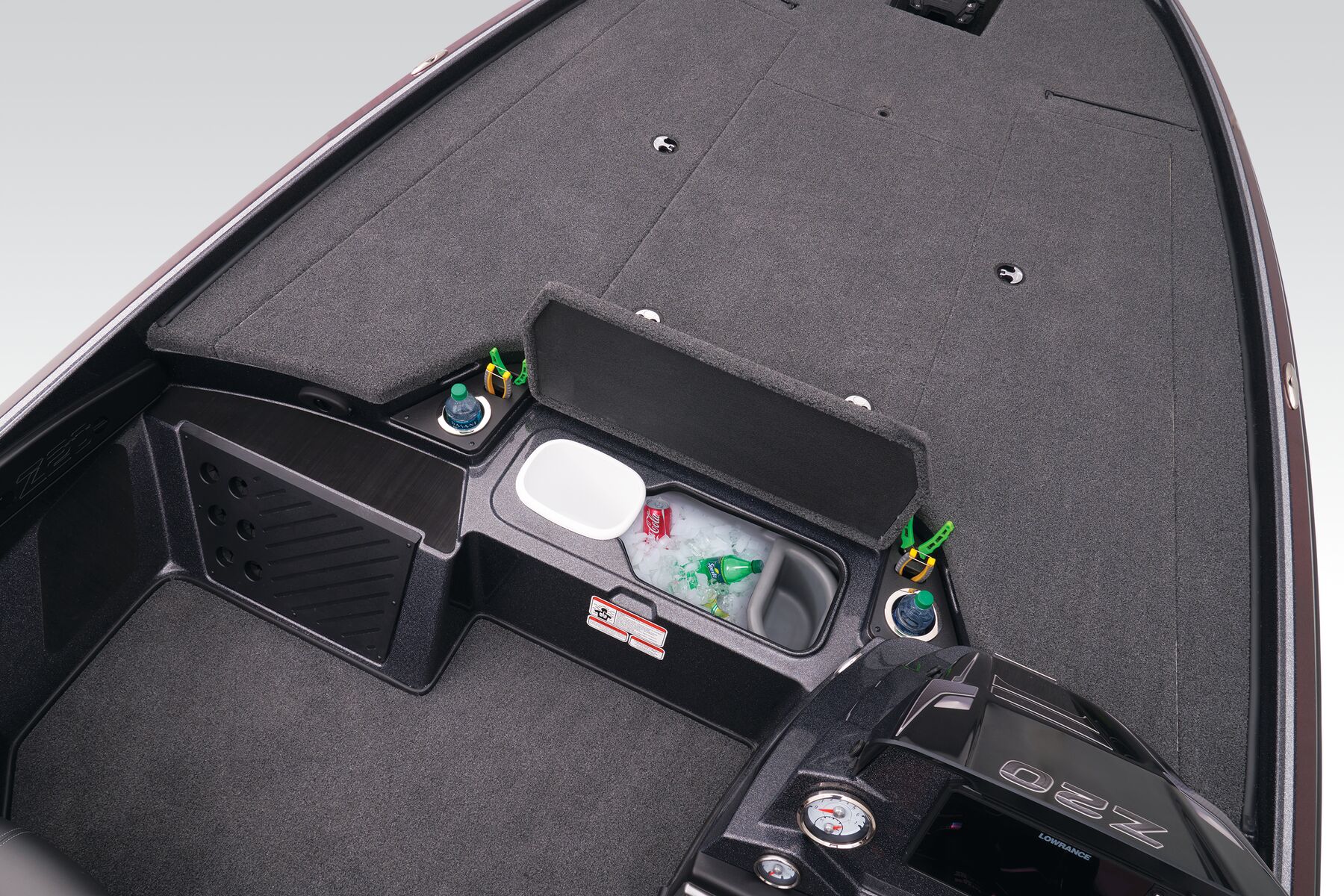

- Step to bow deck w/62-qt. (58.67 L) insulated cooler, removable trash receptacle & snap-in sandwich tray
- Partner rod ramp w/rod handle organizer & hold-down strap
- Footrest w/non-skid mat under console(s)
- Step to aft deck w/lockable storage & removable tub
- Designated net storage behind seating
- Built-in tournament ruler & holder

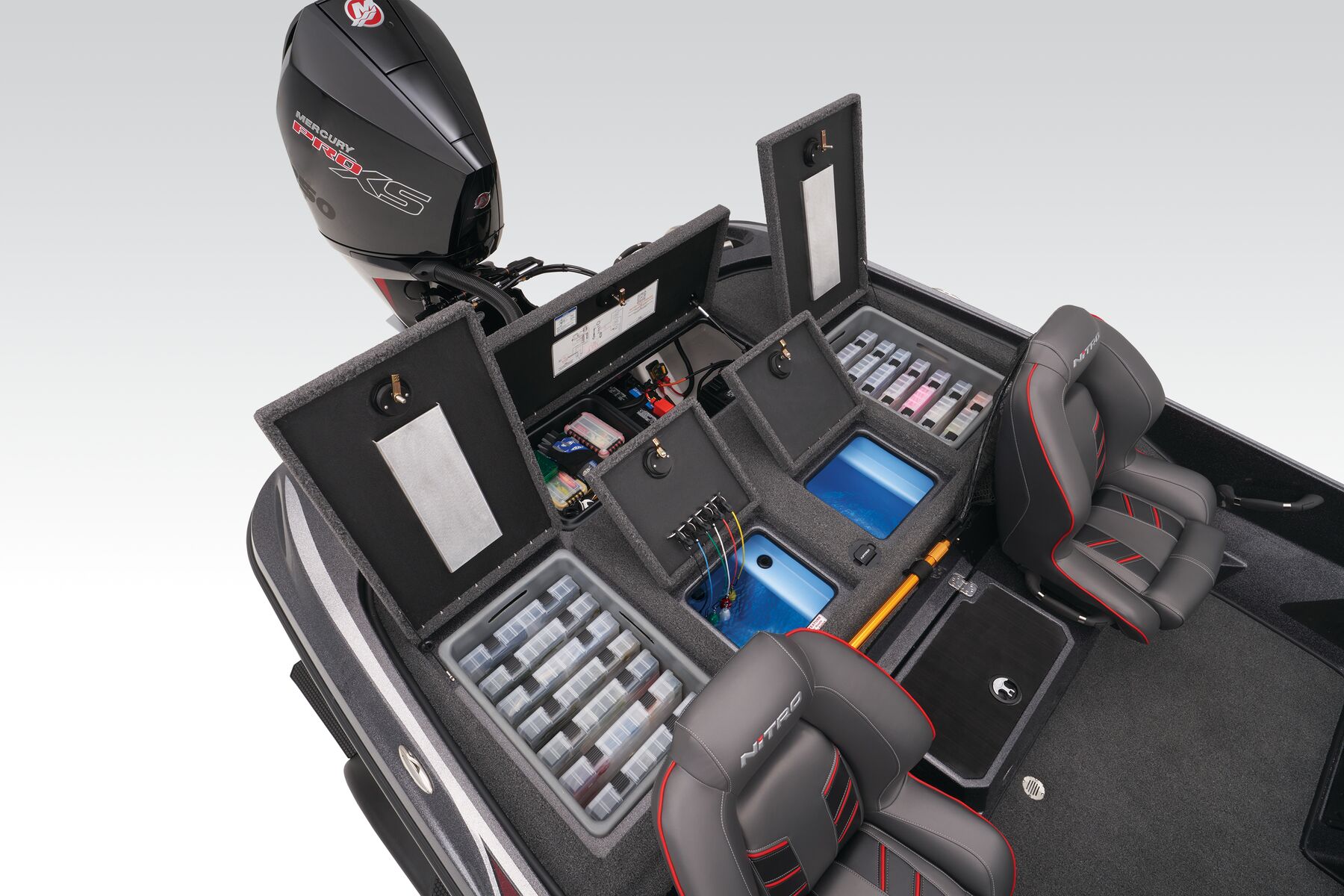

- 2 lift-out, molded aft storage boxes that will each accept seven 3700 tackle trays
- Molded utility rigging compartment for easy access to batteries & pumps & easy cleanup
- Lift-out tool/rope storage tray in rigging compartment
- Insulated aluminum lids w/welded corners
- 16-oz. (.45 kg) plush, marine-grade cut pile carpet on decks & floor
- Lockable latches
Exterior
- NITRO VORTEX TECHNOLOGY™ (NVT™) hull for a smoother, drier ride
- RAPID PLANING SYSTEM™ (RPS™) for quicker holeshots & maximized speed
- 12" (30.48 cm) adjustable jack plate—Black
- Rigging tube for organized wiring & abrasion resistance
- Stainless steel propeller
Construction & Performance
- 100% composite deck core w/superior thermal stability & strength-to-weight ratio
- Deck & hull chemically bonded & mechanically fastened w/stainless steel fasteners every 2" (5.08 cm)
- Gelcoated stringer/liner system
- Foam-filled hull for optimal buoyancy & safety
- Full-width fiberglass-encapsulated composite transom
- Low-profile gunnels to maximize deck size & for easier casting
- NEW splashwell protective film
- Integrated fold-down stainless steel reboarding ladder, angled for allowing optional shallow-water anchor
Electrical
- Angled bow panel w/trolling motor receptacle, anchor/light switch, trim switch & capability to flush mount most 12" (30.5 cm) fishfinders
- LED console courtesy light
- Manual LED-lighted bow gear storage
- Automotive-style labeled fuse panel w/cover
- Interstate® cranking battery
- 2 heavy-duty Interstate® trolling batteries
- NEW NOCO® GB40 jump starter pack
- 6-gauge trolling motor wiring w/50-amp circuit breaker
- Master power switch
- Waterproof Deutsch plugin gauge connectors
- Water/abrasion-resistant connectors
Trailer
- Custom-fit, tandem-axle steel NITRO® trailer
- 7-pin connector
- 14" (35.56 cm) custom aluminum wheels w/radial tires
- Surge disc brakes on both axles
- Hub system w/1-year limited warranty

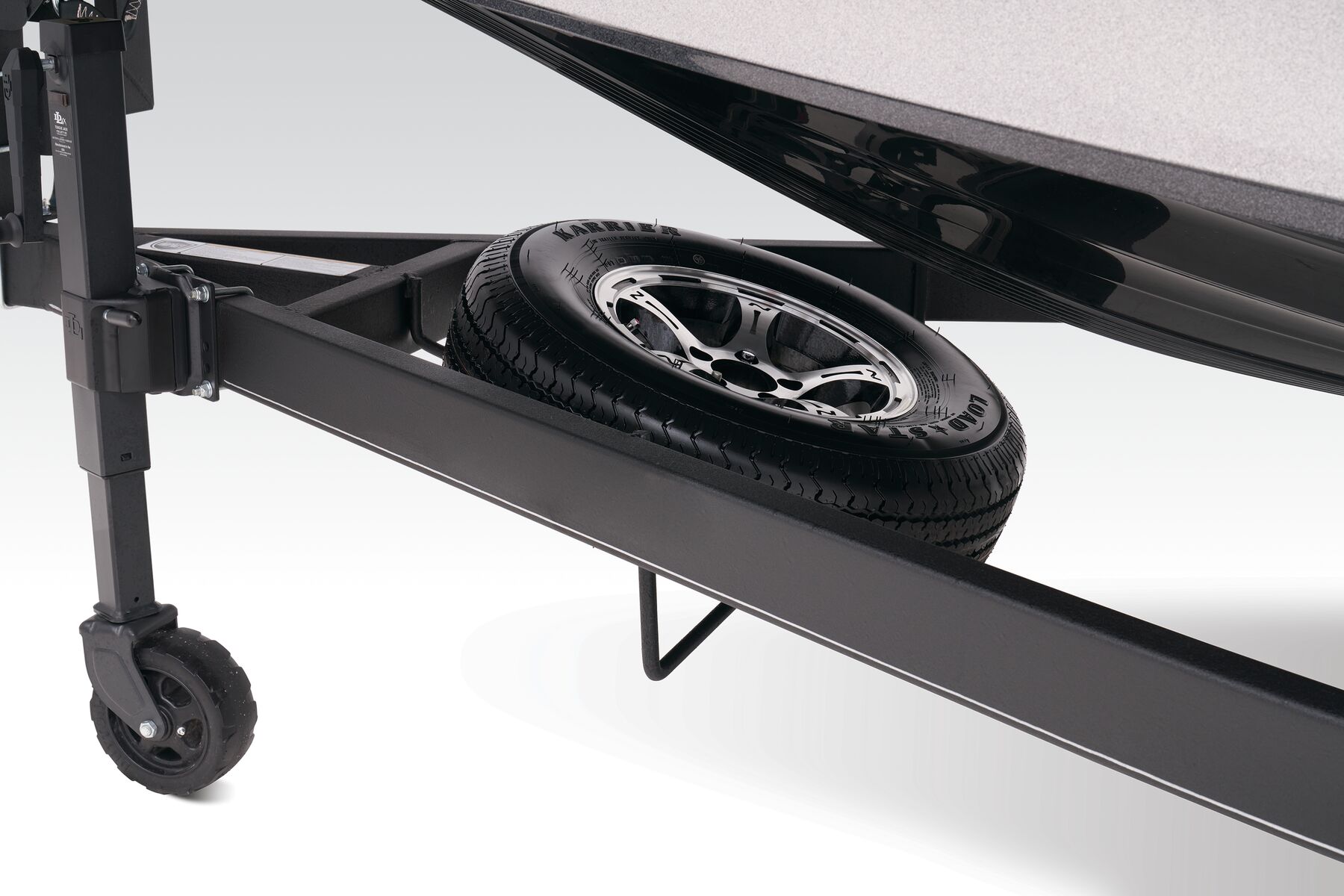

- Spare tire carrier w/matching spare
- All-welded rectangular GALVASHIELD® frame
- Space-saving swing-away tongue to reduce storage length
- Fold-away tongue jack
- Heavy-duty winch w/nylon strap & bow safety strap
- Integrated winch stand step w/safety handle for easier boarding/reboarding at bow while boat is on trailer
- Outboard motor support to reduce hull & transom stress while towing
- Carpeted bunks & fender boards to protect hull
- Submersible LED lights
- Retractable transom tie downs
- Safety cables
Options
